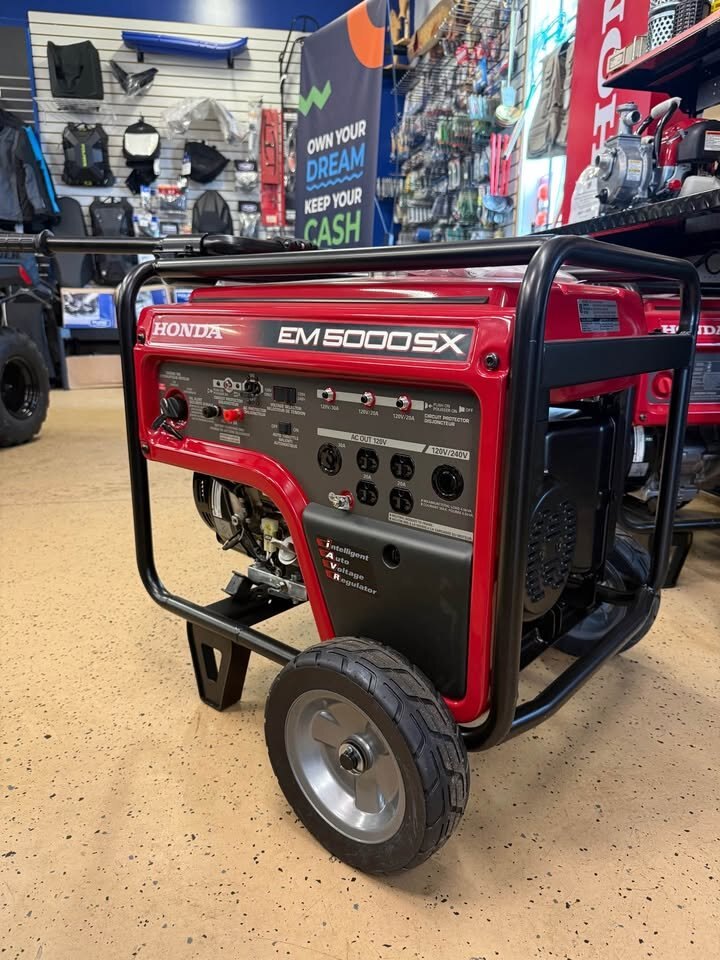

Honda Electric Start 5000 EM5000S3CT2

  • Honda Electric Start 5000 EM5000S3CT2
  • Honda Electric Start 5000 EM5000S3CT2
  • Honda Electric Start 5000 EM5000S3CT2
  • Honda Electric Start 5000 EM5000S3CT2
  • Honda Electric Start 5000 EM5000S3CT2
  • Honda Electric Start 5000 EM5000S3CT2
  • Honda Electric Start 5000 EM5000S3CT2
In Stock
Dealer Price $3,186 CAD
+HST
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Portable power with premium features and traditional Honda durability and performance.

5,000 watts maximum AC output.

Powerful, easy-start Honda iGX390 commercial-grade engine.

Auto-throttle further extends running time by automatically adjusting engine speed to idle when under no load.

12 VDC battery charging capability with optional charge cable.

Standard wheel kit with positive lock folding handles for easy transportation and convenient, compact storage.

Cold Climate Technology™ aids continuous running in cold weather conditions.

Honda exclusive iAVR (Intelligent Auto Voltage Regulation) system for stable power delivery and available extra wattage (7,000 watts for 10 seconds to start larger equipment).

Voltage Selector Switch allows both 120 V and 240 V output, or total generator output to be available through any of the 120-volt outlets, limited only by the capacity of the individual outlet for powering devices with larger wattage requirements.

Please contact Shawn or Chase at North Gate Power Equipment for more details.

705-645-8464

or Sales@NorthGateMuskoka.com or Shawn@NorthGateMuskoka.com




Highlights

  • AC Voltage Available: 120/240

  • Approximate Running Time (hrs)/Tankful:8.1/ 11.2*

  • Cold Climate Technology™: Standard

  • Dry Weight:102.2 kg (225.3 lbs)

Electric Start 5000 Work, Industrial & Home Backup Generator

The commercial Honda Electric Start 5000 generator boasts premium features for demanding commercial usage (non-GFCI applications) and reliable home backup use.
Specifications
Model
EM5000S3CT2
Category Name
Generators
Sale Type
New
Manufacturer
Honda
features
5,000 Watts Maximum AC Output
Powerful, Easy-start Honda IGX390 Commercial-grade Engine
12 VDC Battery Charging Capability With Optional Charge Cable
Cold Climate Technology™ Aids Continuous Running In Cold Weather Conditions
Portable Power With Premium Features And Traditional Honda Durability And Performance
Auto-throttle Further Extends Running Time By Automatically Adjusting Engine Speed To Idle When Under No Load
Standard Wheel Kit With Positive Lock Folding Handles For Easy Transportation And Convenient, Compact Storage
Honda Exclusive IAVR (Intelligent Auto Voltage Regulation) System For Stable Power Delivery And Available Extra Wattage (7,000 Watts For 10 Seconds To Start Larger Equipment)
Voltage Selector Switch Allows Both 120 V And 240 V Output, Or Total Generator Output To Be Available Through Any Of The 120-volt Outlets, Limited Only By The Capacity Of The Individual Outlet For Powering Devices With Larger Wattage Requirements
electrical
Generator Type
Brush type
DC Charging Cable
Optional (P/N 32650-825-015)
Frequency (Hertz)
60
AC Voltage Available
120 / 240
DC Output Volts / Amps
12 / 8
Maximum AC Output (Watts)
5,000
Automatic Voltage Regulator
Standard iAVR (Intelligent Automatic Voltage Regulator)
DC Receptacle Specifications
8 amps/12 VDC is available from these +/- thumb screw terminals. Important Note: AC and DC output can be used simultaneously on this series only. DC system uses floating N (Neutral) type.
Maximum Continuous AC Output (Watts)
4,500 7,000 (iAVR)
Max. Rated AC Amperage @ 120 V / 240 V
37.5 / 18.8 (58.3 / 29.2 for 10 sec. iAVR)
Common Duplex Receptacle Specifications
37.5 amps/120 VAC continuous is available as combined total from these twin duplex AC receptacles.
High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications
This receptacle (NEMA # L5-30R) will supply 30 amps at 120 VAC continuously. This receptacle (NEMA # L14-30R) will supply 18.8 amps (4.5 kVA) at 240 VAC continuously.
engine
Engine Type
Honda iGX390T2 OHV, 4-stroke, air-cooled
Displacement
389 cc
Auto Throttle
Standard
Starting System
Electric/recoil
Fuel Tank Capacity
23.5 litres (5.17 Imp. gal.)
Remote Start Capability
Optional
Low Level Oil Alert System
Standard
additional information
Battery
Standard (P/N 31500-MCR-J01)
** / ***
**At max. rated output (continuous) in Watts. ****At 50% rated output (continuous) in Watts.
Dry Weight
102.2 kg (225.3 lbs.)
Lifting Hook
Optional (P/N 06810-Z22- A30ZA)
Transport Wheels
2 Wheel standard
Cold Climate Technology
Standard
Height (With Lift-Hook)
773 mm (30.4 in.) optional lift hook
Height (Without Lift-Hook)
719 mm (28.3 in.)
Width (With Handles And Wheels)
706 mm (27.8 in.)
Length (With Handles And Wheels)
1,043 mm (41.1 in.)
Noise Level DB(A) (1.5 M To 7 M)
72**
Rated Fuel Consumption (litres/hr)
2.90**
Width (Without Handles And Wheels)
530 mm (20.9 in.)
Length (Without Handles And Wheels)
681 mm (26.8 in.)
Approximate Running Time (hrs.) / Tankful
8.1** / 11.2****
