ID # 37114011

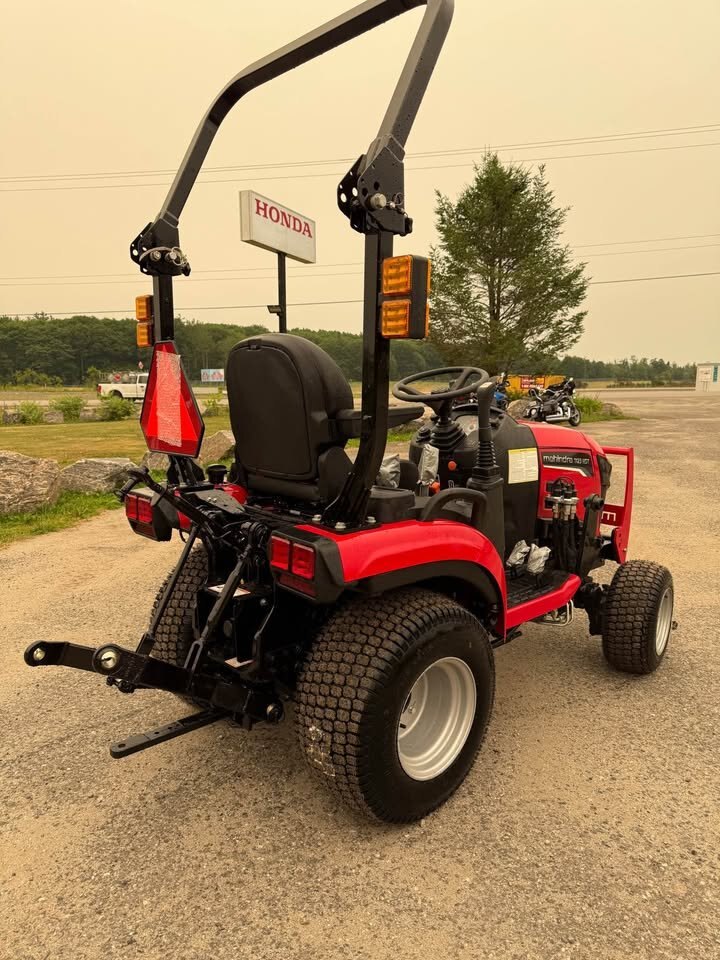

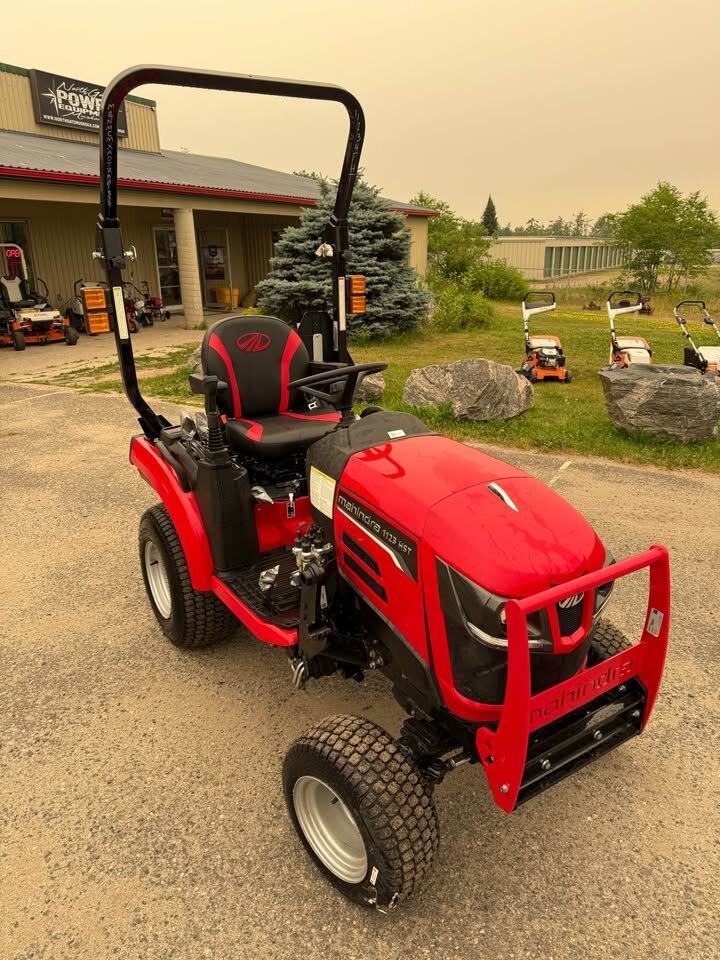

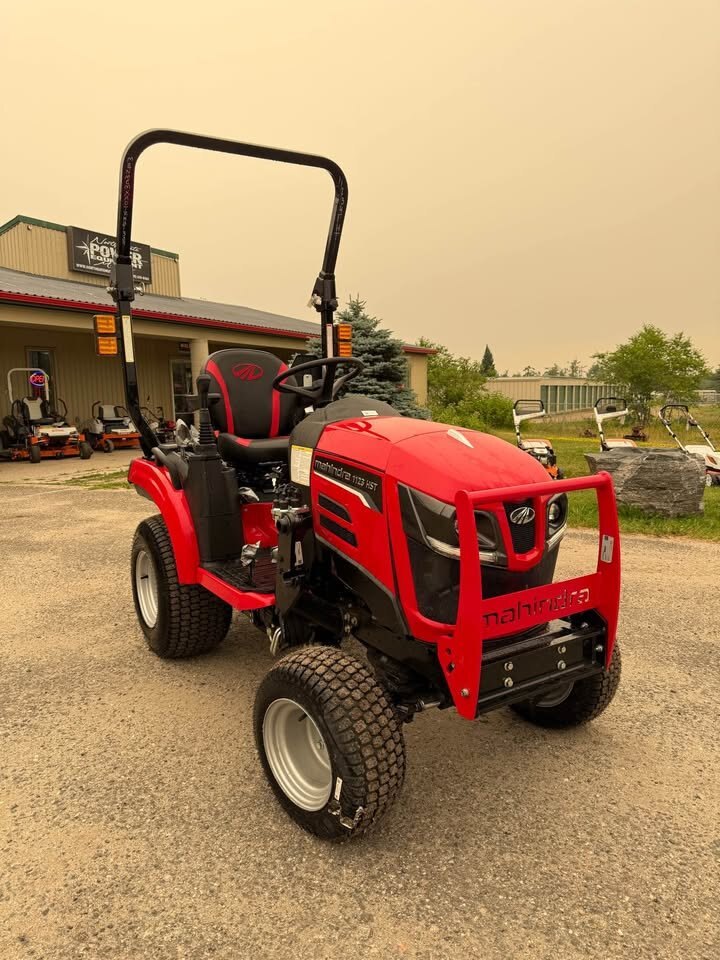

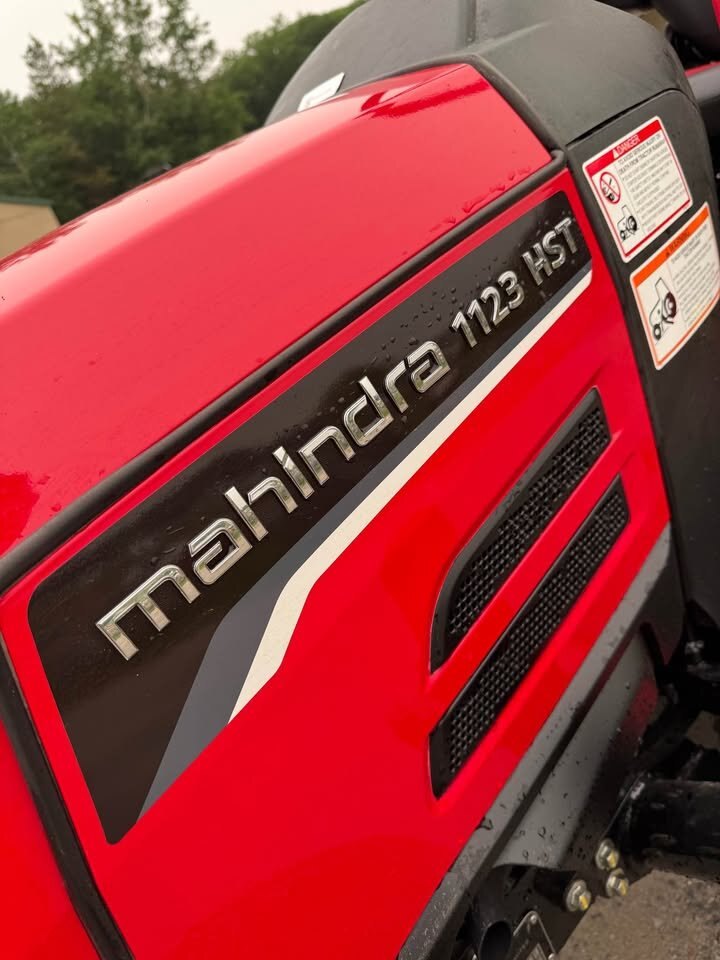

Mahindra 1123 HST Open Station ROPS

Dealer Price $16,611 CAD
+HST
Overview

PRICING DOES NOT INCLUDE TAXES

FOR 0.0% FINANCE PRICING PLEASE INQUIRE WITH CHASE OR SHAWN AT NORTH GATE MUSKOKA 705-645-8464

OR SALES@NORTHGATEMUSKOKA.COM OR SHAWN@NORTHGATEMUSKOKA.COM

The Mahindra 1123 is a sub-compact, 22.9 HP diesel tractor from Mahindra's 1100 series.

 It features a hydrostatic transmission (two-range) and four-wheel drive.

 It is designed for small farms, orchards, and landscaping.

 It boasts a heavy 794 lb loader lift capacity.

No DPF: The engine does not use a Diesel Particulate Filter (DPF). This means no extra maintenance or downtime for "regeneration" (cleaning the filter with high heat).

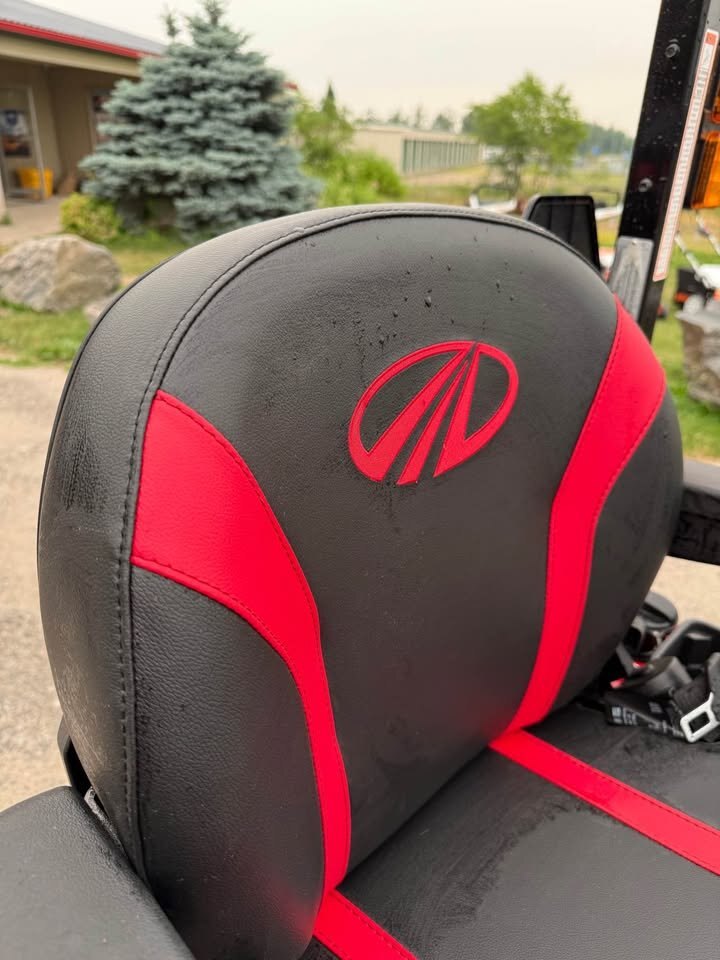

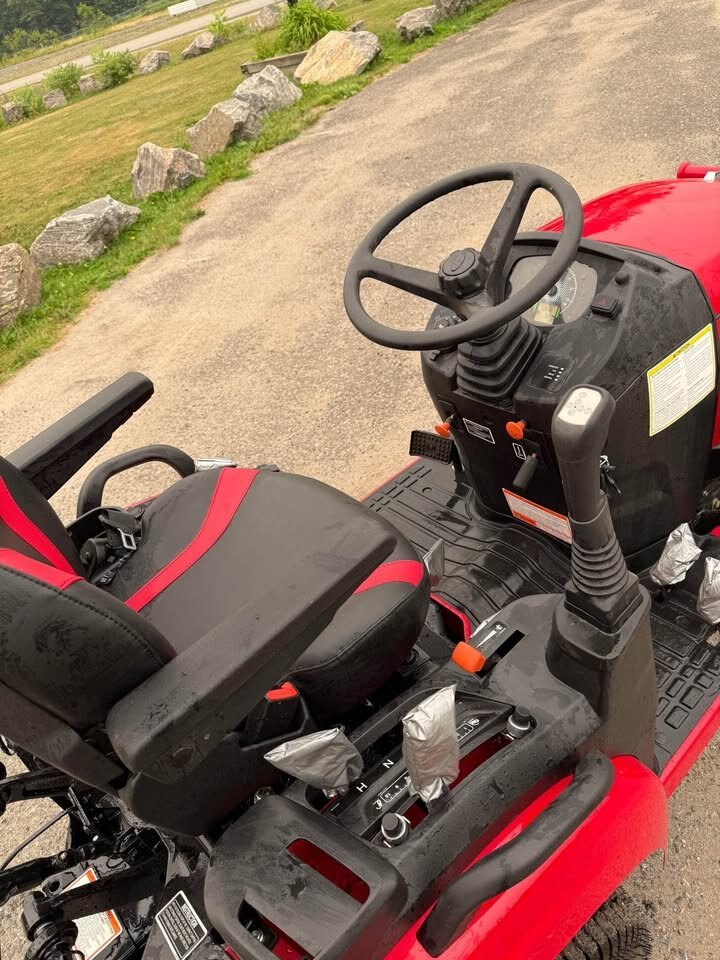

Comfort & Controls: Features an mComfort swivel seat and side-by-side pedals for easy forward/reverse driving.

Cab or Open Station: Available as an open-station with folding ROPS (Roll-Over Protective Structure) or with a heated and air-conditioned cab.

Versatility:

Can be fitted with a B11 backhoe, mid-mount mower deck, or front-end loader.

Engine: 22.9 HP, 3-cylinder diesel

Lift Capacity (Loader): 794 lbs

Lift Capacity (3-Point): 771 lbs

Weight: 1,620 lbs (Open) to 1,962 lbs (Cab)

Specifications
Model
1123
Category Name
Tractors
Year
2026
Sale Type
New
Manufacturer
Mahindra
HORSEPOWER
22.8 HP
TRANSMISSION
HST - 2 ranges
Loader Lift Capacity
794 lbs (360.152 kg)
3- POINT HITCH LIFT CAPACITY
770 lbs (349.266 kg)
engine
Engine Type
Naturally Aspirated, Indirect Injection, Water Cooled Diesel
Bore & Stroke [in]
Bore : 3, Stroke : 3.2
Fuel Tank [gal (L)]
6.6 (25)
Number Of Cylinders
3
Engine HP [kW] @ RPM
22.8 (17) @ 2900
Displacement [in3 (cc)]
67.2 (1102)
drive train
Brakes
Single Pedal
Transmission
HST - 2 range
Max Speed (mph)
7.3
Number Of Speeds
Infinite
pto
PTO Type
Independent Wet Clutch
Mid PTO RPM
2500 @ 2837
PTO HP (kW)
18.3 (13.6)
Rear PTO RPM
540 @ 2837
hydraulics
Type
Open Center with Position Control
3-Point Hitch
CAT I
Total Pump Output, Main (GPM)
7.4
Maximum Total Flow [gpm (L/min)]
7.6 (28.7)
Total Pump Output, Steering (GPM)
3.8
3- Point Hitch Lift Capacity @24" Aft [lb (kg)]
771 (350)
electrical
Battery
12.6 V, 650 CCA
Alternator
12V, 55A
dimensions
Weight [lb (kg)]
1620 (735)
Wheelbase [in (mm)]
55.1 (1400)
Overall Width [in (mm)]
46.3 (1177)
Turning Radius [ft (m)]
7.2 (2.2)
Overall Height [in (mm)]
OS 86.6 (2200) Cab 80.5 (2044)
Overall Length [in (mm)]
100.4 (2550)
Minimum Ground Clearance [in (mm)]
6.7 (169)
wheels and tires
IND [Front/Rear]
18x8.5-10 / 26x12-12
TURF [Front/Rear]
16x7.5-10 / 24x12-12
loader
Model Number
L11
Digging Depth (in)
3.14
Max Lift Height (in)
73.2
Loader Lift Capacity [lb (kg)]
794 (360)
literature
Name Link
Brochure Download
