Honda High Pressure 2" WH20XTC
In Stock
Dealer Price
$1,065 CAD
+ HST
Overview
Specifications
features
pump
engine
dimensions
literature
Documents
$1055 + HST
Please contact Shawn or Chase at North Gate Power Equipment Muskoka for more details
1689 Winhara Rd. - Gravenhust
sales@northgatemuskoka.com or shawn@northgatemuskoka.com
705-645-8464

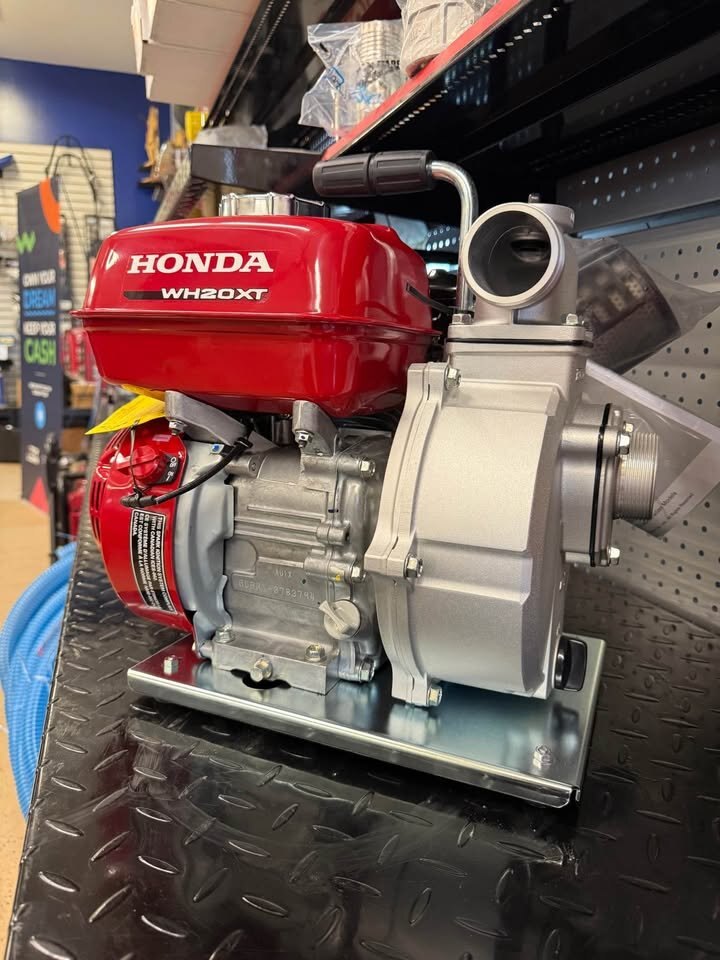

The Honda WH20X is a 2-inch commercial high-pressure water pump.
Engine: Honda GX series commercial-grade, overhead valve (OHV) engine.
Port Size: 2-inch suction and discharge (50 mm).
Maximum Pressure: Around 61 to 64 psi.
Flow Rate: Moves up to 500 to 600 liters per minute (110-130 gallons per minute).
Uses: Ideal for sprinklers, nozzles, and high-pressure water transfer
Highlights
|
High Pressure 2" PumpThe Honda High Pressure 2" Pump is high-pressure pump designed for a variety of applications requiring high pressure – ideal for sprinklers or nozzles. Maximum pressure: 61 psi. |
Model
WH20XTC
Category Name
Power Equipment
Year
2026
Sale Type
New
Manufacturer
Honda
Convenient Carrying Handle And Hose Strainer Come Standard
Designed To Use With A Fire Hose Nozzle For Spraying Further Distances Or Irrigation
Moves Up To 500 Litres (110 Imp. Gal.) Per Minute Through 50 Mm (2 In) Suction And Discharge Ports, High Pressure (61 Psi)
Perform A Multitude Of Duties, From Water Transfer To Irrigation, With This Commercial-grade, High-output, High-pressure Pump
Pump
Centrifugal
Type
Self-priming
Impeller
Cast iron
Pump Body
Aluminum
Frame Type
Handle type, steel base
Total Head
43 m (141 ft.)
Drive Unit Type
Direct coupled / mechanical seal
Litres Per Hour
30,000
Water Pump Type
High pressure
Litres Per Minute
500
Imp. Gal. Per Hour
6,600
Imp. Gal. Per Minute
110
Suction Port Diameter
50 mm (2 in.)
Discharge Port Diameter
50 mm (2 in.)
Suction Head (Total Lift.)
8 m (26 ft.)
Priming Time @ 5 M (16.4 Ft.)
80 seconds
Governor
Mechanical centrifugal
Engine Type
Honda GX160T2, 4-stroke, OHV, single cylinder
Displacement
163 cc (9.95 CID)
Starting System
Recoil starter
Fuel Tank Capacity
3.1 L (0.68 Imp. gal.)
Lubrication System
Forced splash
Width
37.5 cm (14.8 in.)
Height
40.5 cm (15.9 in.)
Length
42.5 cm (16.7 in.)
Dry Weight
23.5 kg (51.8 lbs.)
Literature
| Name | Link |
| Brochure | Download |
Model
WH20XTC
Category Name
Power Equipment
Year
2026
Sale Type
New
Manufacturer
Honda
Quantity
1
